Coming soon:
A new generation of animatronic and robotic control boards from Bottango.
Powerful, intuitive, and built for creators.
Take the guesswork out of control hardware.
Bottango boards let you focus on animating and bringing characters to life.
Be first in line when they launch!
Sign up for Bottango updates and get the latest scoop on all Bottango products and discounts, including when we launch our lineup of new control boards.

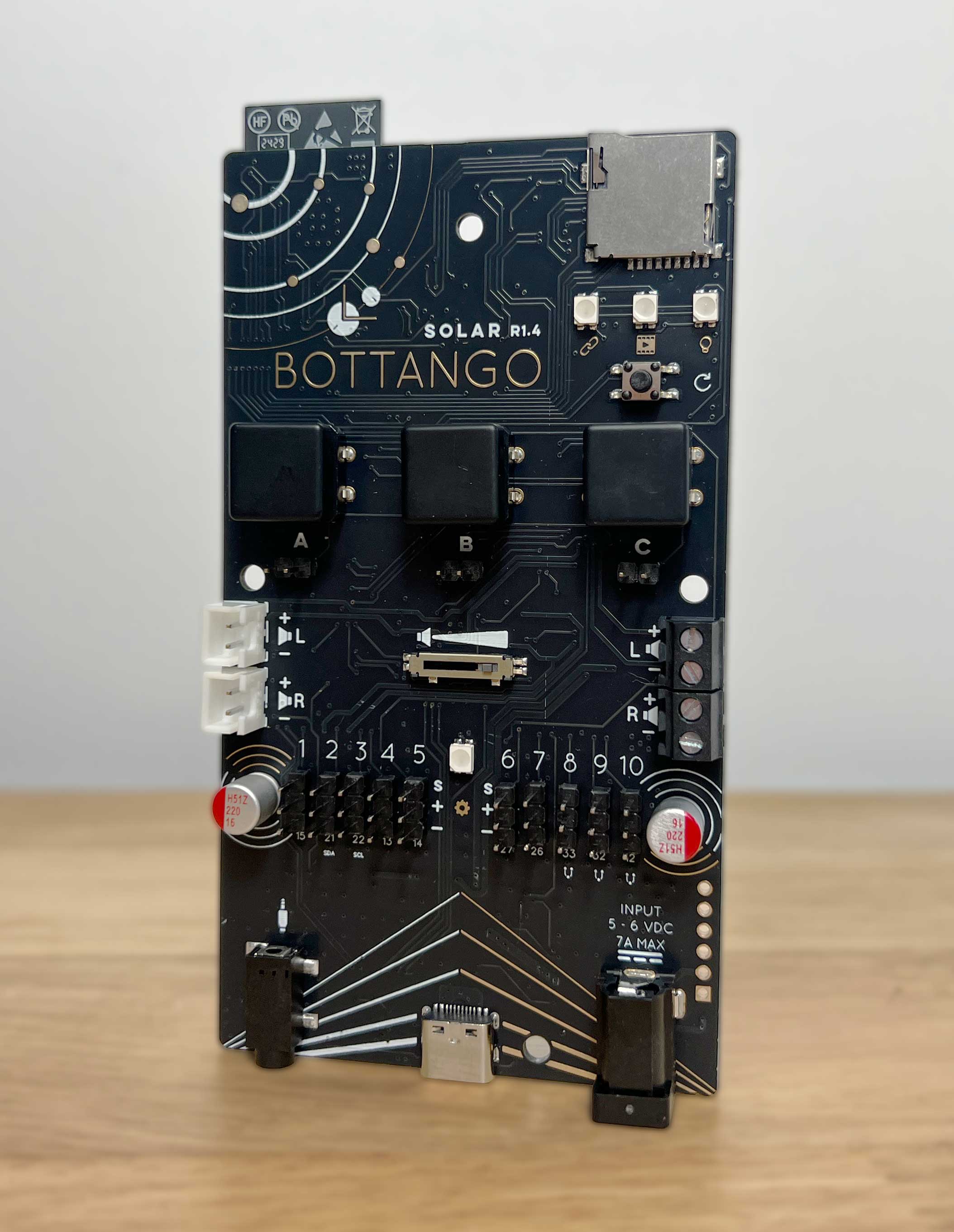

Bottango Solar
Bottango Solar is the all-in-one animatronic control mega board.
- ESP32-based animatronic control powerhouse.
- 10 servo headers with integrated servo power.
- Onboard audio playback with line-out and a built-in 2.1 × 2 W stereo amp.
- MicroSD card reader for storing audio files and animations. Play animations easily without a connected computer.
- Three animation trigger buttons provide quick control.
- Bottango Solar connects wirelessly to other Bottango control boards for seamless integration.

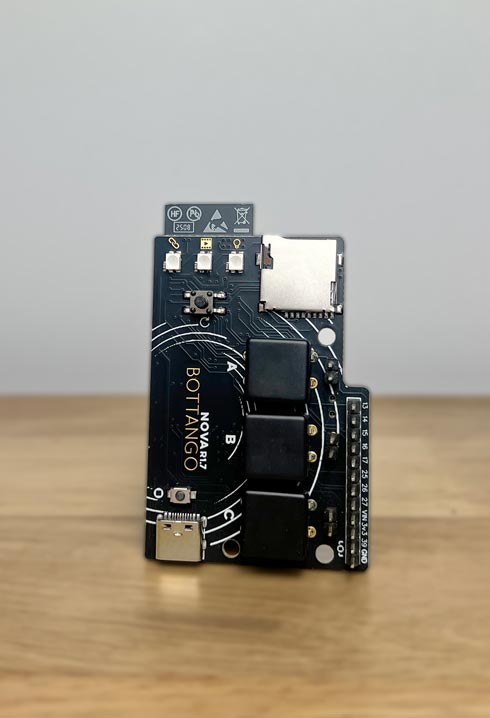

Bottango Nova
Run your show with Bottango Nova.
- ESP32-based show control board, making combining multiple Bottango control boards effortless.
- MicroSD card reader for storing animations. Play animations easily without a connected computer, and serve out animation data to all other connected Bottango control boards as a show controller.
- Three animation trigger buttons provide quick control.
- Create a low latency wireless network for other Bottango control boards to connect to.
- Eight additional GPIO pins to expand its functionality.

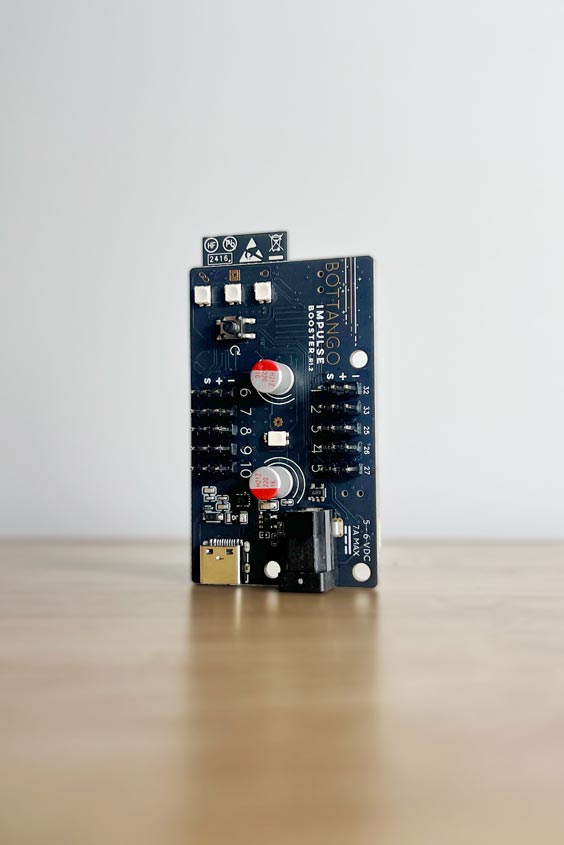

Bottango Impulse
Expand your servo count with Bottango Impulse.
- ESP32-based animatronic controller with 10 servo headers and integrated servo power.
- Expand your project servo count or use as a straightforward all-in-one ESP32-based servo driver.
- Bottango Impulse connects wirelessly to other Bottango control boards for seamless integration.

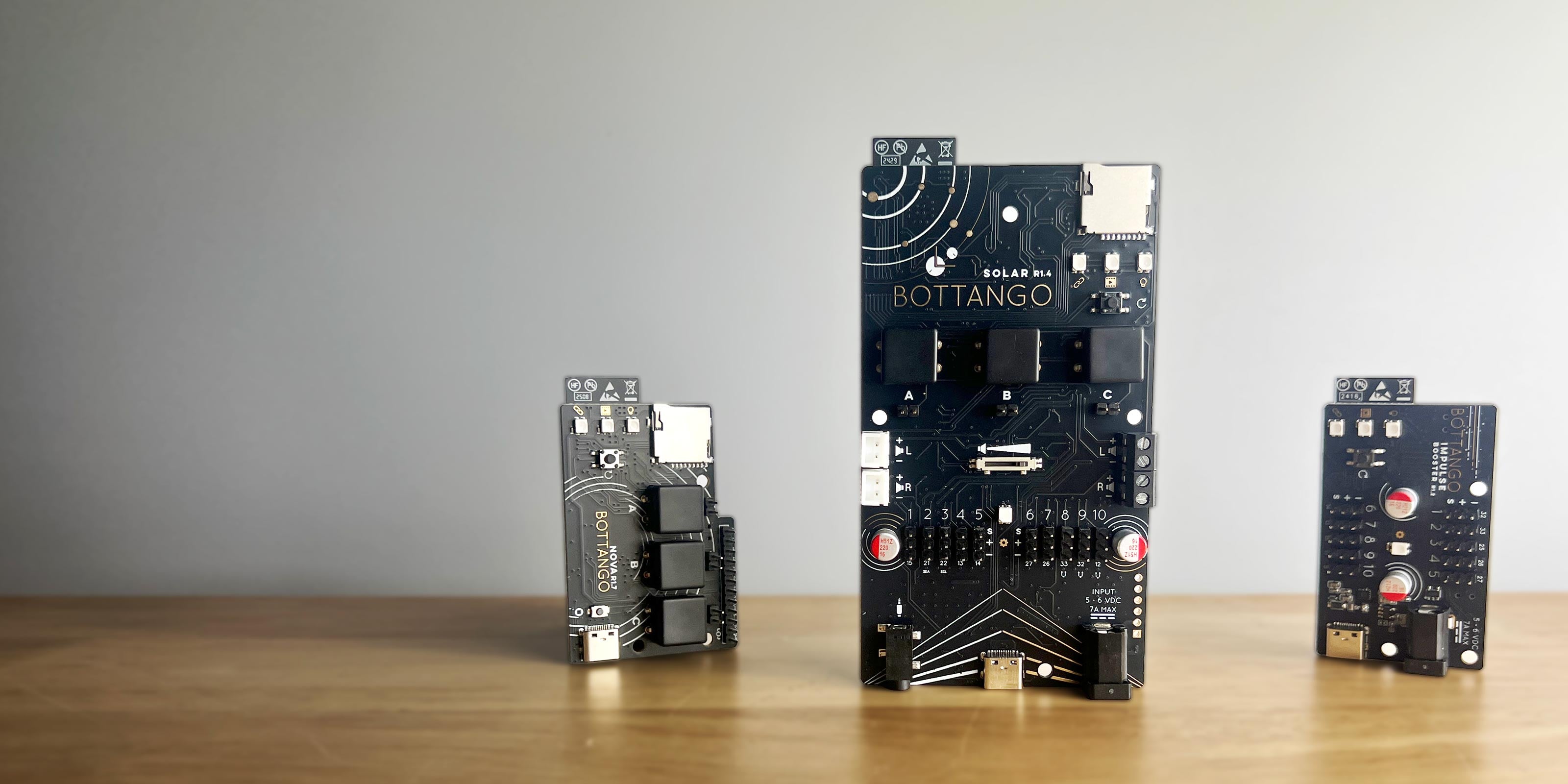

Bottango Solar
Bottango Nova
Bottango Impulse
All-in-one animatronic control
Wireless show controller
Servo expansion
Yes (10 Servos)
Yes (10 Servos)
Line-out and 3 Watt Amp
Yes (audio files and playback animations)
Yes (playback animations)
Yes (3)
Yes (3)
Yes (8)
Yes
Yes
Yes
ESP32 (240 MHz, 520 KiB RAM)
ESP32 (240 MHz, 520 KiB RAM)
ESP32 (240 MHz, 520 KiB RAM)
Open source
Open source
Open source
Just Around the Corner...
The best boards to build with Bottango!
These new control boards are just around the corner... watch this space!
Bottango’s control lineup is the easiest and most powerful way to build with Bottango. Deeply integrated with Bottango’s animatronic control software, these boards remove the guesswork from control hardware. Configure your setup and create animations directly in Bottango’s design studio.
Want to customize? Every board in the lineup ships with open-source firmware, ready to flash with your own tweaks and modifications. Or simply plug in and start animating your show right away.
Made to work together. You can designate one board as a low-latency wireless “bridge,” connected to your computer, while the rest of your boards link wirelessly through it. Want to go computer-free? Export animation data directly to the bridge and let it act as a standalone show controller for all connected boards. Bottango Nova is purpose-built to be the perfect bridge and show controller, but any board in the lineup can take on that role.
Part of a community. You’re not on your own! Join other makers, builders, and animatronic show-stoppers already using Bottango control boards to create amazing animatronic art.
