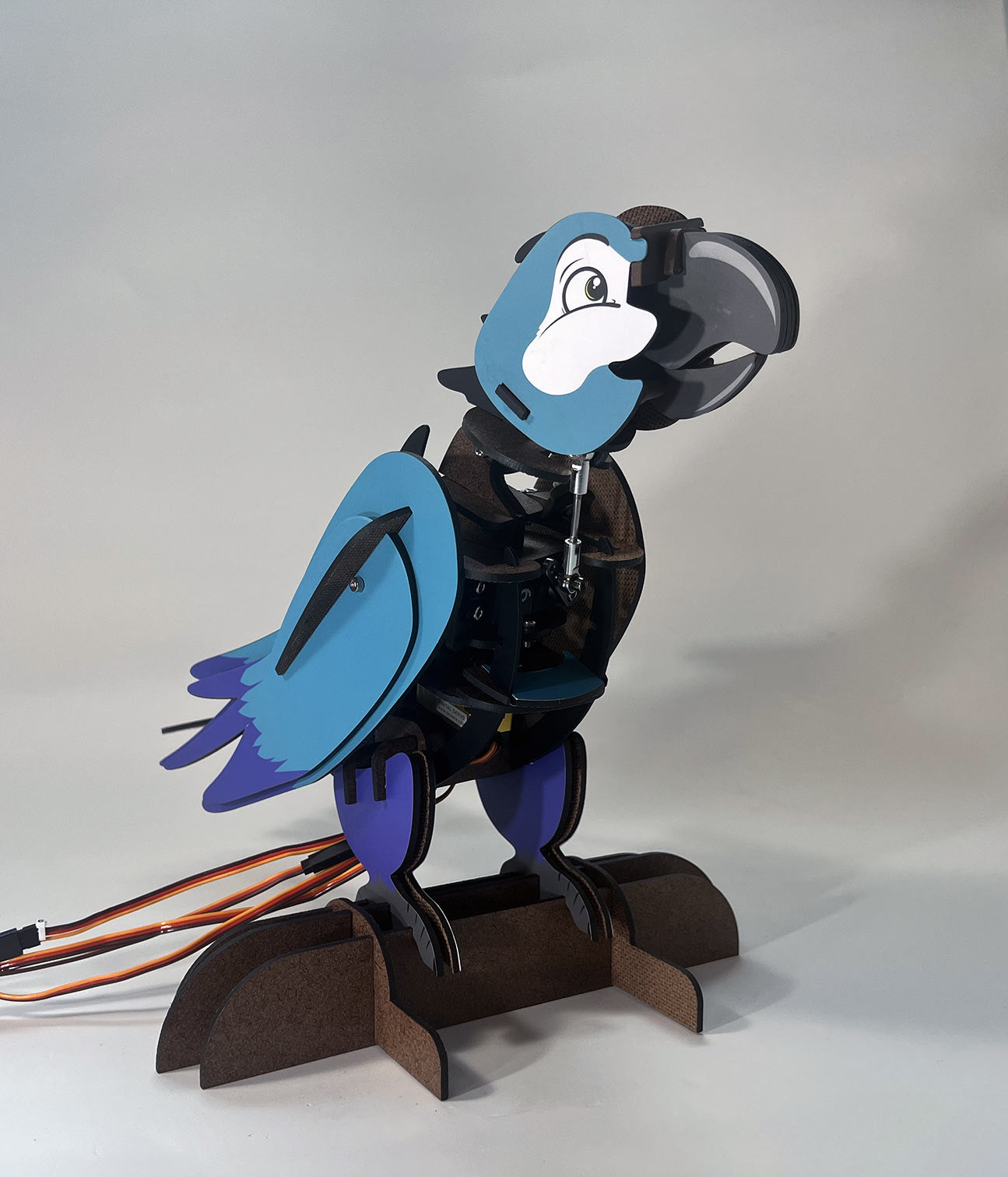

Replacement Maxwell Part
Need to replace a Maxwell part? Order replacements here.
How To Order
NOTE: These replacement parts are available for current Maxwell owners to replace parts they damaged in their kit.
Add one item to your cart for each replacement part needed. See the items below for help on figuring out which part is which item in the shop.
If for example, you needed a replacement wood leg lock, a replacement plastic wing arm, and a replacement set of M3 nuts, you would order:
2x Small wood / plastic part
1x Replacement Hardware
Then in the order notes on your cart, please include "I need 1x leg lock, 1x wing arm, and 1x set of M3 nuts."
If you have replacement part needs that aren't met by these options, reach out at Contact@Bottango.com and we can find a solution.
Small wood / plastic part
These are any wooden or plastic parts in the small boxes 1 - 10 in your Maxwell kit, as well as cut 2 and cut 4:
- Left Foot
- Right Foot
- Chest Deck
- Wing Support
- Wing Connection
- 5x Small Shims
- 3x Large Shims
- Board Stand Side
- Board Stand Front
- Board Stand Back
- Upper Beak Outside Left
- Upper Beak Outside Right
- Upper Beak Inside Left
- Upper Beak Inside Right
- Left Lower Beak
- Right Lower Beak
- Neck Cosmetic
- Mouth Horn
- Head Servo Lock
- Left Head Panel
- Right Head Panel
- Head Deck
- Head Crossmember
- Beak Crossmember
- Wing Servo Deck
- Left Wing Mount
- Right Wing Mount
- Wing Horn
- Wing Arm
- Top Neck Deck
- Tail Lock
- Small Neck Lock
- Neck Spine
- Neck Servo Riser
- Leg Lock
- Large Neck Lock
- Body Lock Front
- Front Cosmetic
- Back Cosmetic
- Chest Horn
- Body Crossmember
- Body Lock Back Top
- Back Body Lock
As well, customers with a valid order number can get DXF and STL files by request by reaching out to contact@bottango.com.
Large Wood Part
These are any of the large wood parts in the cut packages 1, 3, or 5.
- Perch Side
- Outside Perch
- Inside Perch
- Left Primary Wing
- Left Secondary Wing
- Right Primary Wing
- Right Secondary Wing
- Tail
As well, customers with a valid order number can get DXF and STL files by request by reaching out to contact@bottango.com.
Metal Part
These are 1x of a metal part in cut 3.
- Main body
- Center head
As well, customers with a valid order can get DXF and STL files by request by reaching out to contact@bottango.com.
Hardware
This is any one set of hardware in box 1:
- Set of M3 8mm bolts.
- Set of M3 12mm bolts.
- Set of M3 16mm bolts.
- Set of M3 22mm bolts.
- Set of M3 hex nuts.
- Set of M3 washers (M3 x 9mm).
- Set of tools (1 M 2.5 Alan wrench, 2 steel wrenches, 1 plastic nut starter)
- Set of 4 servo extensions and 4 extension labels.
- Set of 2 M3 ball joints and an M3 35mm threaded rod.
If you need just a couple different nuts/bolts, reach out to Contact@Bottango.com and we'll find something that works for you.
Wing Servo
Replacement servo 3.
Head Rotation Servo
Replacement servo 5.
Head Nod Servo
Replacement servo 6.
Mouth Servo
Replacement servo 9.
Logic board and USB cable
Replacement Bottango branded logic board and USB type A to B cable.
Note that you can use most any Arduino Uno as a 1:1 stand in replacement for the Bottango logic board.
Servo Board
Replacement Bottango Maxwell servo board.
Power Supply
Replacement 6v5a dc barrel jack power supply.
